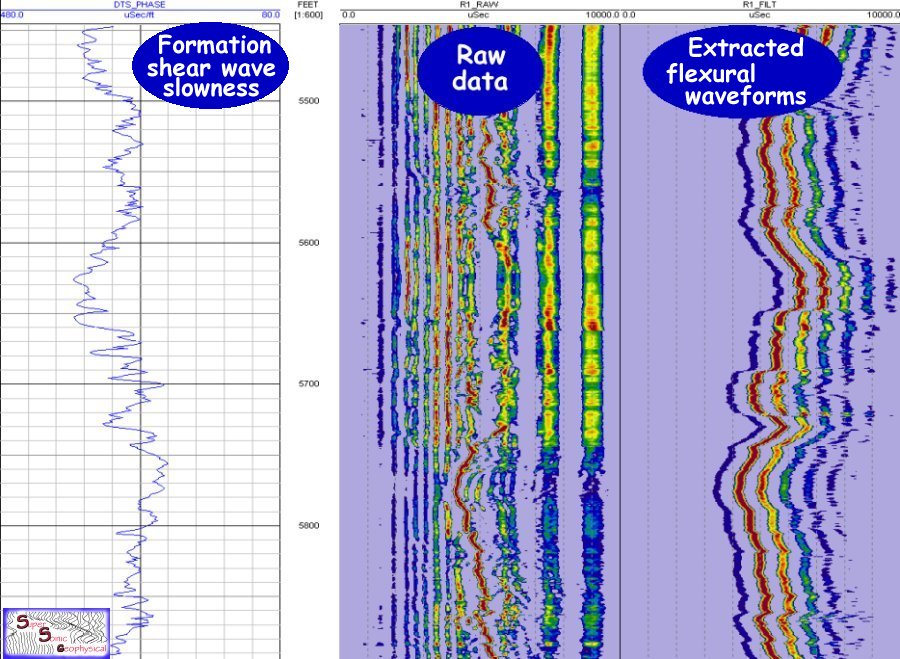

Difficult cased hole acoustic data processed with XACTware
Track #1, final estimation of the formation shear wave slownes. Track #2, raw data:
strong tube wave, evidence of tool mode and highly attenuated borehole flexural arrivals can be observed.
Track #3, processed flexural waveforms:
final processed flexural waveforms which were extracted from the raw data.
